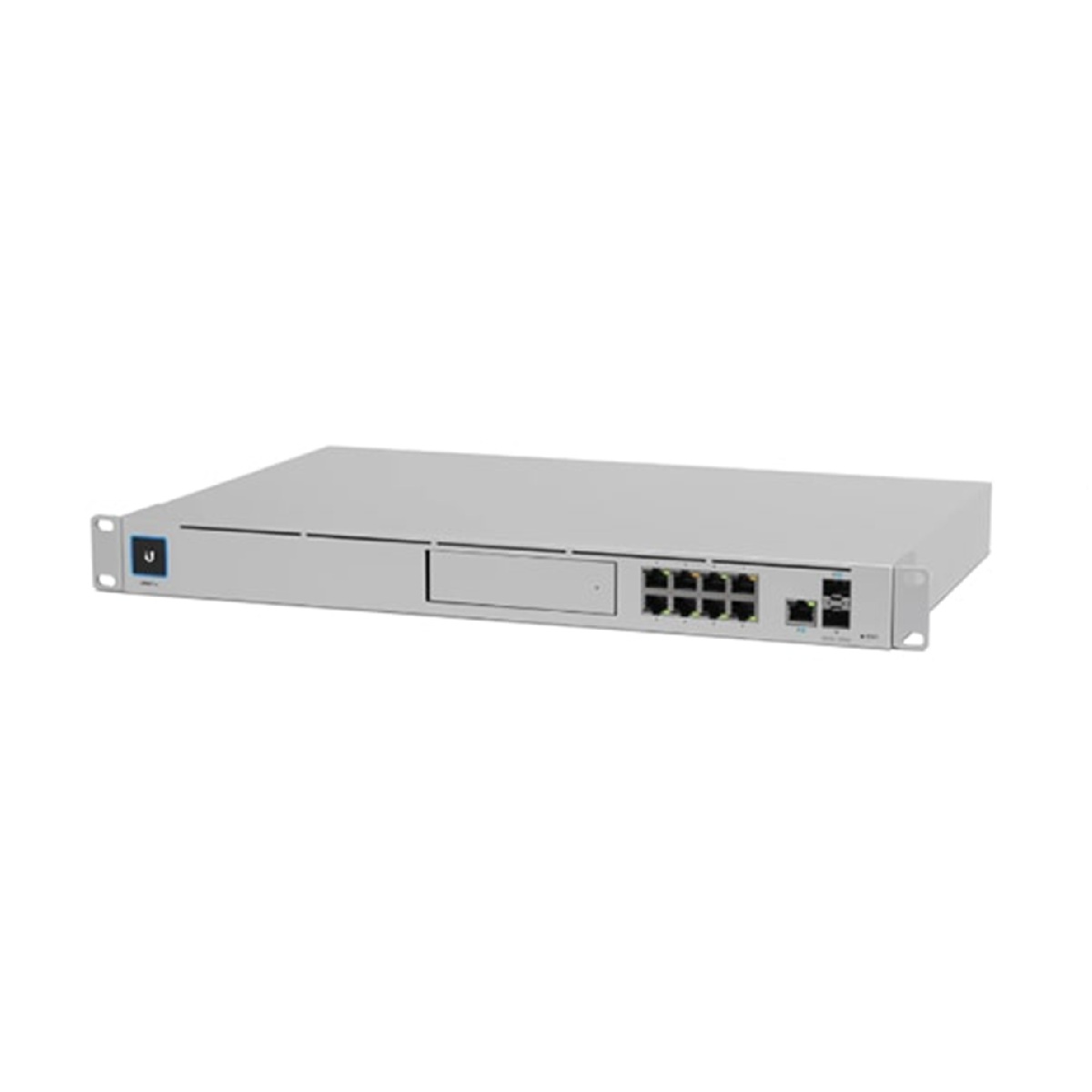

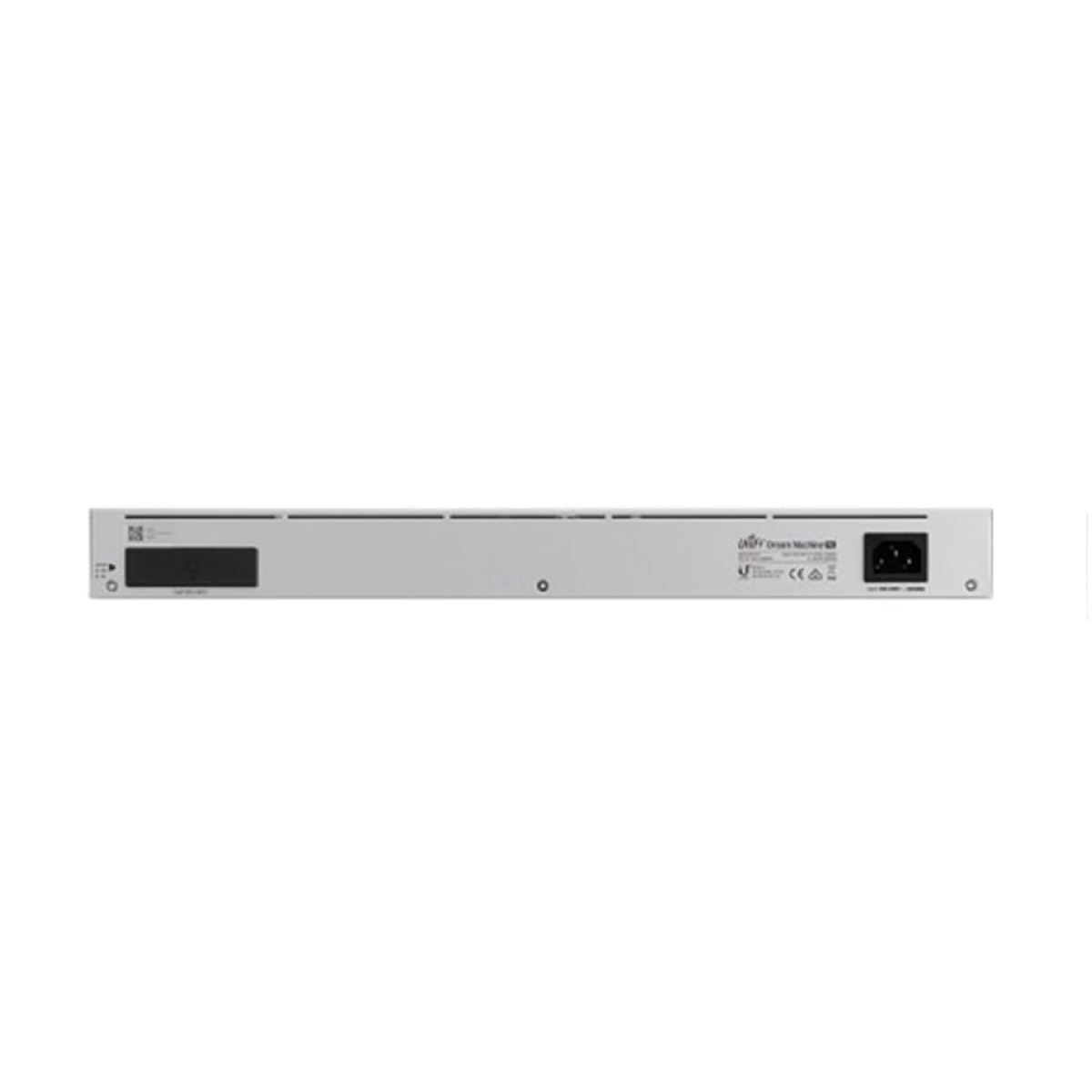

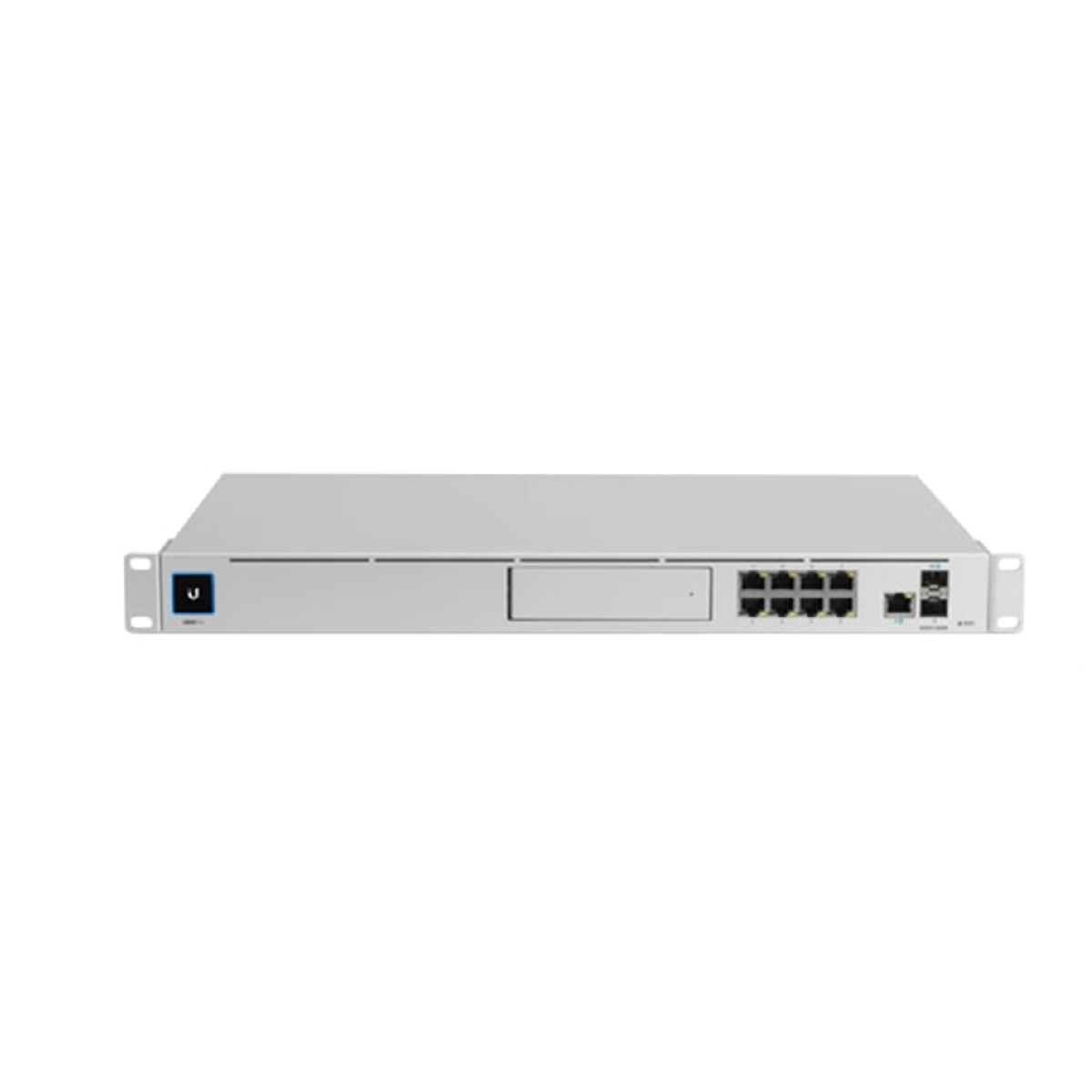

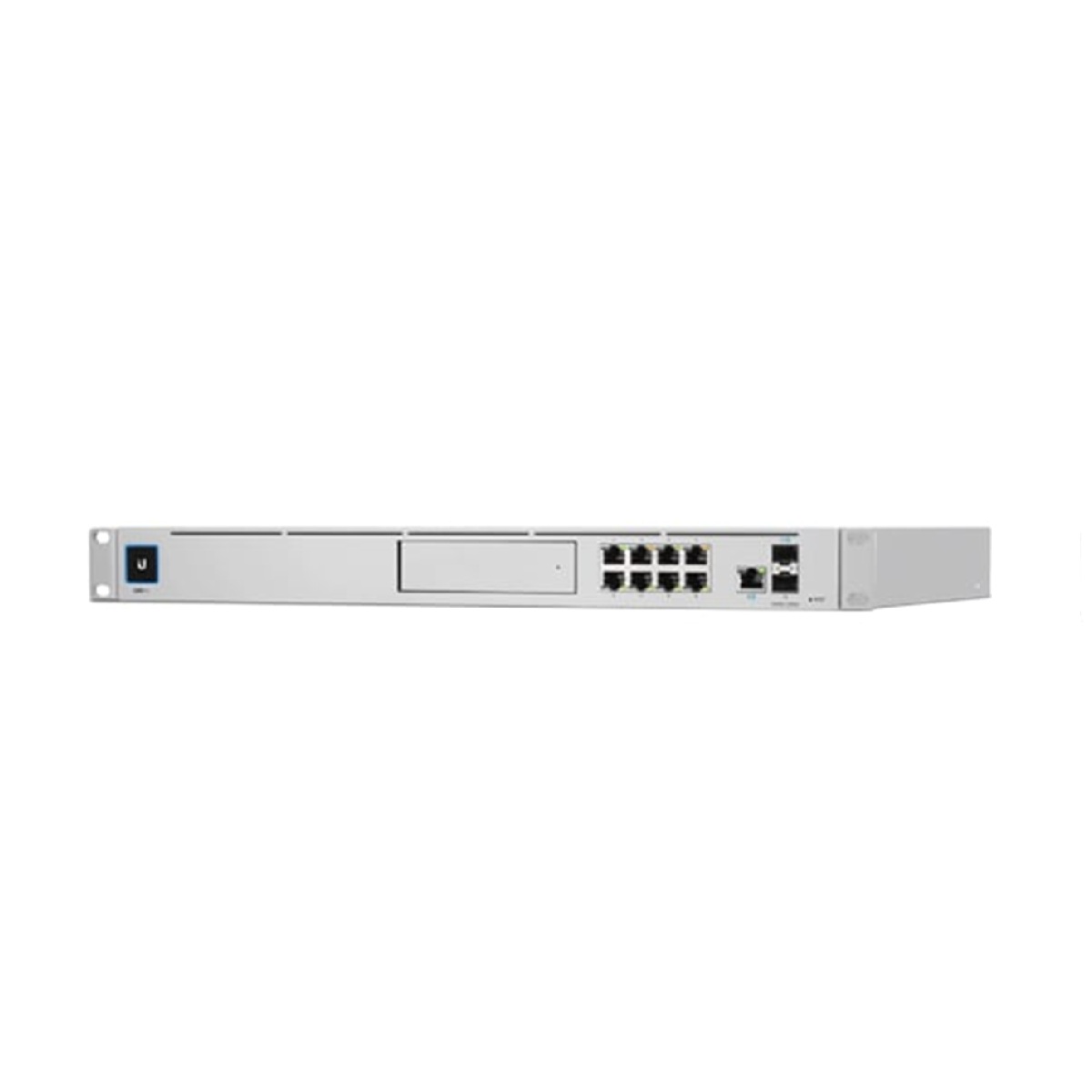

Ubiquiti UDM-Pro UniFi Dream Machine Pro 8 Port Gigabit Switch
Ubiquiti UDM-Pro UniFi Dream Machine Pro Enterprise Network Appliance is an all-in-one network appliance for a scalable network in an office, retail, or hospitality environment.
£387.23 inc.VAT / £322.69 exc.VAT
Ubiquiti UDM-Pro UniFi Dream Machine Pro Enterprise Network Appliance
Ubiquiti UDM-Pro UniFi Dream Machine Pro 8 Port Gigabit Switch
The Ubiquiti UDM-Pro UniFi Dream Machine Pro 8 Port Gigabit Switch is an all-in-one network appliance for a scalable network in an office, retail, or hospitality environment. Powered by a fast 1.7 GHz quad-core processor, the UDM Pro combines multiple functions into a single device. It integrates software – the UniFi Network Controller and UniFi Protect video surveillance – with all-in-one hardware featuring a high-performance security gateway with a built-in switch and hard drive bay.
Key Features
- Advanced UniFi Security Gateway with built-in switch.
- Eight (8) port Gigabit switch with 10GbE SFP+ port.
- One (1) unpopulated NVR hard drive bay.
- Dual WAN ports for redundancy: 10GbE SFP+ and 1GbE RJ45.
- Bluetooth connectivity for easy setup via UniFi app.
- Embedded Enterprise Software: UniFi Network.
- Scalable UniFi Network Controller with advanced management capabilities.
- UniFi Protect video surveillance NVR with 3.5″ (or 2.5″) HDD support.
- Enterprise-class IPS/IDS and DPI capabilities.
- 1.3″ Touchscreen display for quick status information.
- Powered by fast 1.7 GHz quad-core processor.
- Significantly greater performance over the previous generation of UniFi Security Gateways.
Specifications
Dimensions
- 442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24 in.)
Weight
- 3.90 kg (8.60 lb.)
- With Brackets: 3.99 kg (8.80 lb.)
Interfaces
- Networking
- 8 x 10/100/1000 RJ45 LAN Ports
- 1 x 10/100/1000 RJ45 WAN Port
- 1 x 1/10GbE SFP+ LAN Port
- 1 x 1/10GbE SFP+ WAN Port
- Management
- Ethernet In-Band
- 1 x Bluetooth BLE
IDS/IPS Throughput
- 3.5 Gbps
Processor
- Quad ARM Cortex-A57 Core at 1.7 GHz
System Memory
- 4 GB DDR4
On-Board Flash Storage
- 16 GB eMMC
Max Power Consumption
- 33W
Voltage Range
- 100 to 240VAC
Power Method
- 1 x Universal AC Input, 100-240VAC, 50/60 Hz
- 1 x RPS DC Input
Power Supply
- Internal 50W/12V
LEDs
- HDD
- Activity
- RJ45
- Link/Speed/Activity
- SFP+
- Link/Speed/Activity
ESD/EMP Protection
- Air: ± 16 kV, Contact: ± 12 kV
Operating Temperature
- -10ºC to 40ºC (14ºF to 104ºF)
Operating Humidity
- 5% to 95% Non-condensing
Certifications
- CE, FCC, IC
Package Contents
- 1 x UniFi Dream Machine Pro
- 2 x Rack-Mount Brackets
- 8 x Bracket Screws
- 4 x Mounting Screws
- 4 x Cage Nuts
- 1 x Security Screw
- 4 x 2.5″ HDD Screws
- 1 x Power Cord
- 4 x Rubber Feet
Standard Warranty: 1-Years
| Weight | 3.99 kg |
|---|---|
| Dimensions | 44.24 × 4.37 × 28.56 cm |
