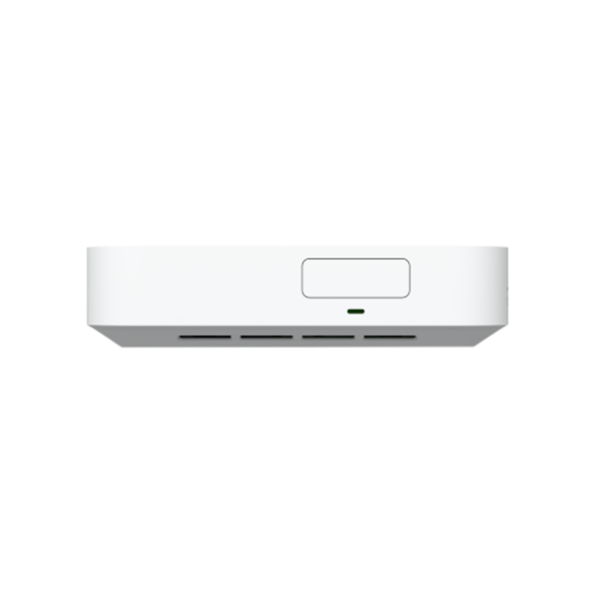

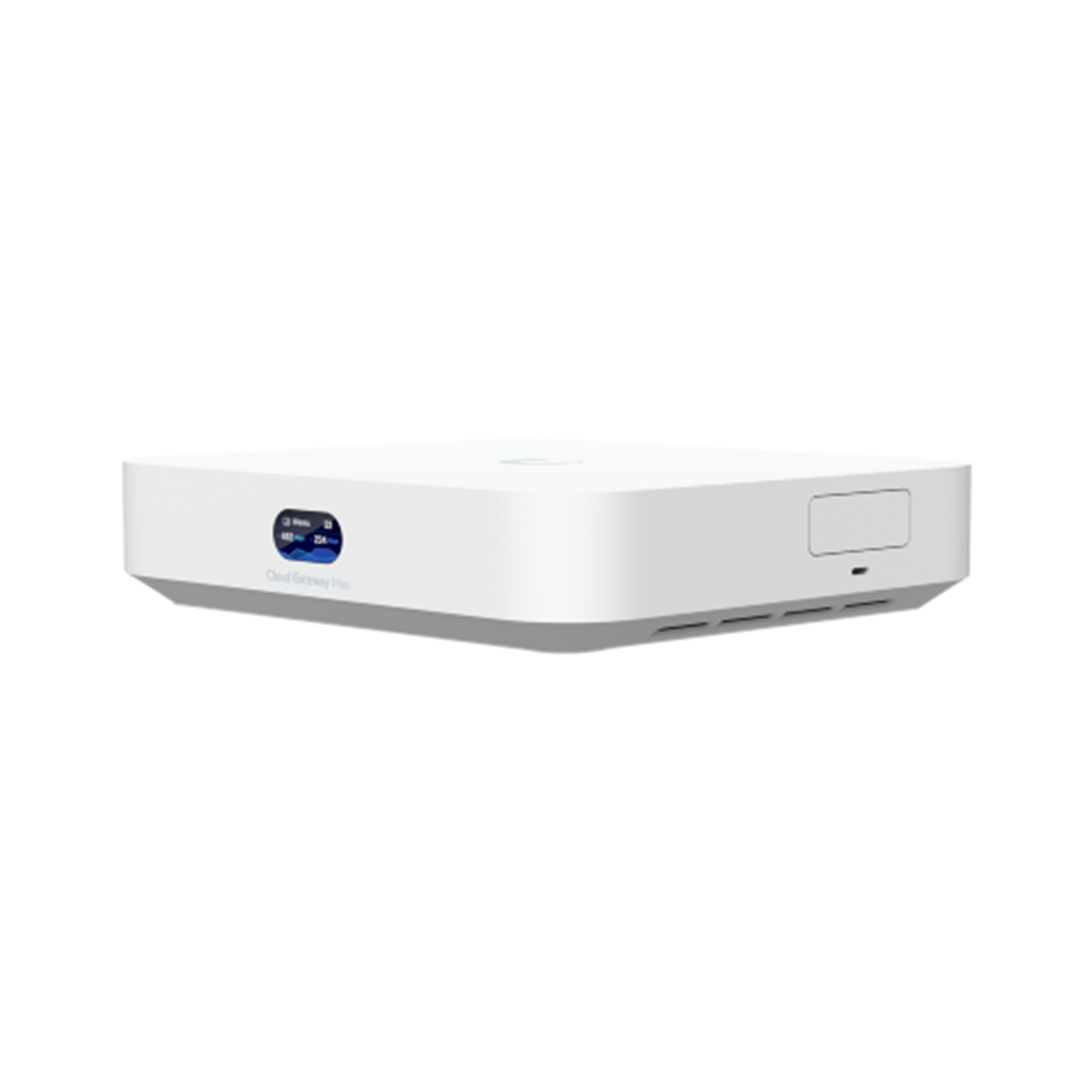

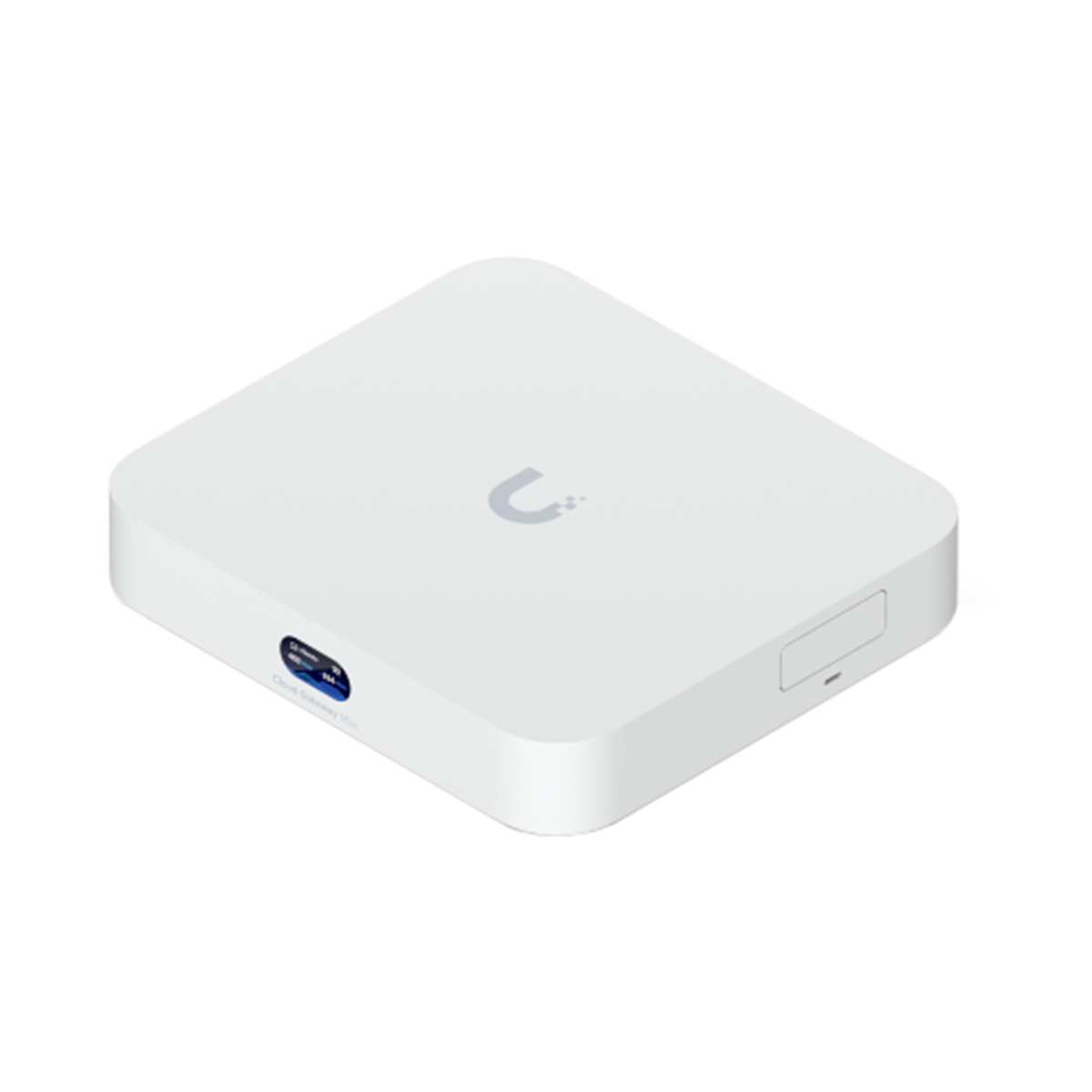

Ubiquiti UniFi UCG-Max Cloud Gateway Max Broadband Router
Ubiquiti UniFi UCG-Max Cloud Gateway Max Broadband Router is designed for efficiency and high performance in a compact form factor. It supports over 30 UniFi devices and can handle up to 300 clients, making it an excellent choice for medium to large networks.
£335.22 inc.VAT / £279.35 exc.VAT
Out of stock
Ubiquiti UniFi UCG-Max Cloud Gateway Max Broadband Router w/ 512GB Storage
Ubiquiti UniFi UCG-Max Cloud Gateway Max Broadband Router
The Ubiquiti UniFi UCG-Max Cloud Gateway Max Broadband Router is designed for efficiency and high performance in a compact form factor. It supports over 30 UniFi devices and can handle up to 300 clients, making it an excellent choice for medium to large networks. This router offers impressive routing capabilities to ensure your network remains secure and operates smoothly.
Key Features
- Includes full UniFi application suite for device management.
- Manages 30+ UniFi devices and 300+ clients.
- 1.5 Gbps routing with IDS/IPS.
- Multi-WAN load balancing.
- Includes 512 GB NVMe SSD storage for NVR.

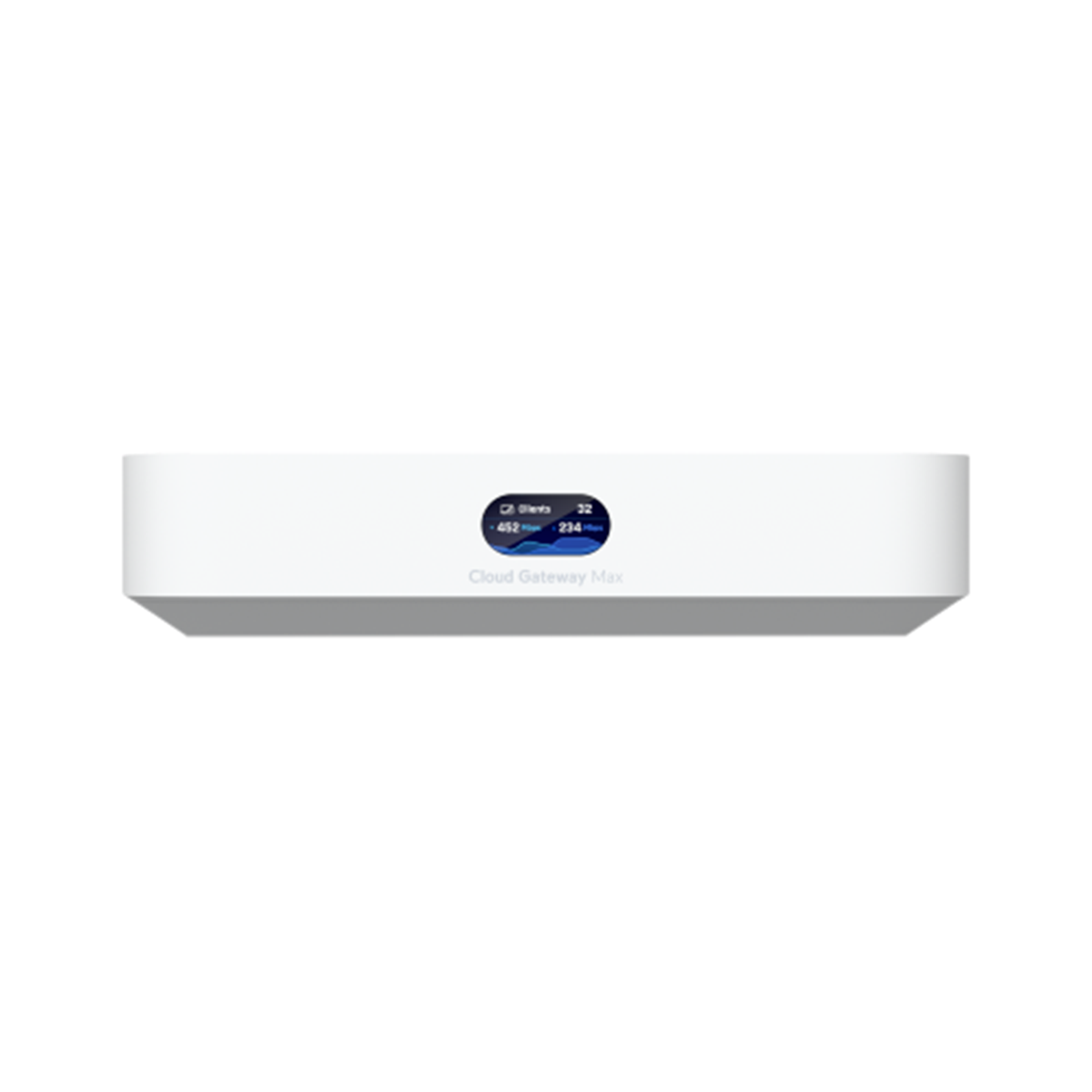

- 0.96″ LCM status display.
- USB-C powered (adapter included).
Specifications
Mechanical
Dimensions
- 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2 in.)
Weight
- 519 g (1.1 lb)
Enclosure material
- Polycarbonate
Hardware
Processor
- Quad-core ARM Cortex-A53 at 1.5 GHz
System memory
- 3 GB DDR4
On-board storage
- 512 GB NVMe SSD
Management interface
- Ethernet
- Bluetooth
Networking interface

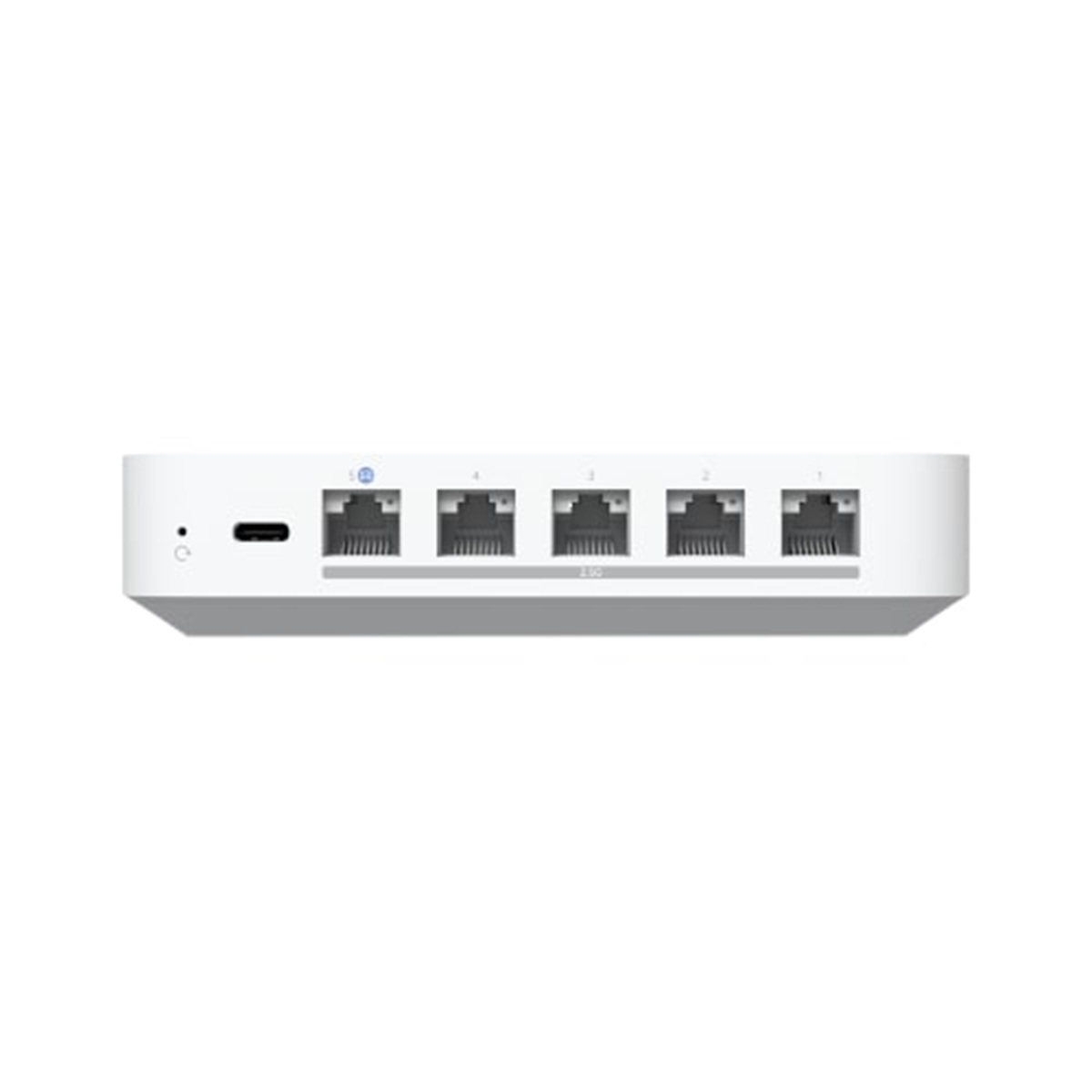

- LAN: 4 x 1/2.5 GbE RJ45 ports (including 1 port remappable to WAN)
- WAN: 1 x 1/2.5 GbE RJ45 port
IDS/IPS throughput
- 1.5 Gbps
- Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.
Power method
- USB type C (5V DC/5A)
Supported voltage range
- 100–240V AC
Max. power consumption
- 16.1W
LCM display
- 0.96″ status display
Button
- Factory reset
Ambient operating temperature
- -10°C to 40°C (14°F to 104°F)
Ambient operating humidity
- 5 to 95% noncondensing
Certifications
- CE, FCC, IC
Gateway Features
Performance
- Redundant WAN with failover and load balancing
- WiFi QoS with UniFi APs
- Application, domain, and country-based QoS
- Application and device type identification
- Additional internet failover with LTE Backup
- Internet quality and outage reporting
Next-generation security
- Application-aware firewall rules
- Signature-based IPS/IDS threat detection
- Content, country, domain, and ad filtering
- VLAN/subnet-based traffic segmentation
- Full stateful firewall
Advanced networking
- Licence-free SD-WAN
- WireGuard, L2TP and OpenVPN server
- OpenVPN client
- OpenVPN and IPsec site-to-site VPN
- One-click Teleport and Identity VPN
- Policy-based WAN and VPN routing
- DHCP relay
- Customizable DHCP server
- IGMP proxy
- IPv6 ISP support
LEDs
Ethernet
- Green: Link/Activity
Application Requirements
Mobile app
- UniFi iOS and Android: Version 10.17.2 and later
Standard Warranty: 1-Years
| Weight | 0.519 kg |
|---|---|
| Dimensions | 14.18 × 12.76 × 3 cm |
