Enclosure Material

• Aluminium Alloy

Mounting Materials

• Aluminium Alloy, Polycarbonate

Weatherproofing

• IPX4

Resistance

• IK04

OPTICS

Sensor

• 5 MP CMOS Sensor

Lens

• Fixed Focal Length

View Angle

• Horizontal: 80°
• Vertical: 60°
• Diagonal: 111°

Night Mode

• Built-in Light Sensor
• Built-in IR LED Illumination and IR Cut Filter

VIDEO

Video Compression

• H.264

Resolution

• 2688 x 1512 (16:9)

Maximum Frame Rate

• 24 FPS

Image Settings

• Brightness, Contrast, Sharpness, Saturation, Noise Reduction, 50/60 Hz

SYSTEM

Processor Specs

• Ambarella Advanced Image Processing SoC

Memory Information

• 512 MB DDR3L

Mangement Interface

• UniFi Protect

Networking Interface

• RJ45, 10/100/1000 Mbps Ethernet

Flash Memory Support

• 256 MB

Max. Power Consumption

• 4W

Power Method

• 802.3af PoE

Supported Voltage Range

• 802.3af PoE

Button

• Factory Reset Button

Operating Temperature

• -20 to 40° C (-4 to 104° F)

Operating Humidity

• 0 to 90% Noncondensing

Certifications

• FCC, IC, CE

AUDIO

Microphone

• Yes (Can be Disabled in Software)

SOFTWARE

Controller Software

• UniFi Protect

Mobile Apps

• UniFi Protect iOS and Android

MECHANICAL

Dimensions

• 191.7 x 185 x 43.7 mm (7.55 x 7.28 x 1.72″)

Weight

• 1.2 kg (2.65 lb)

Package Contents

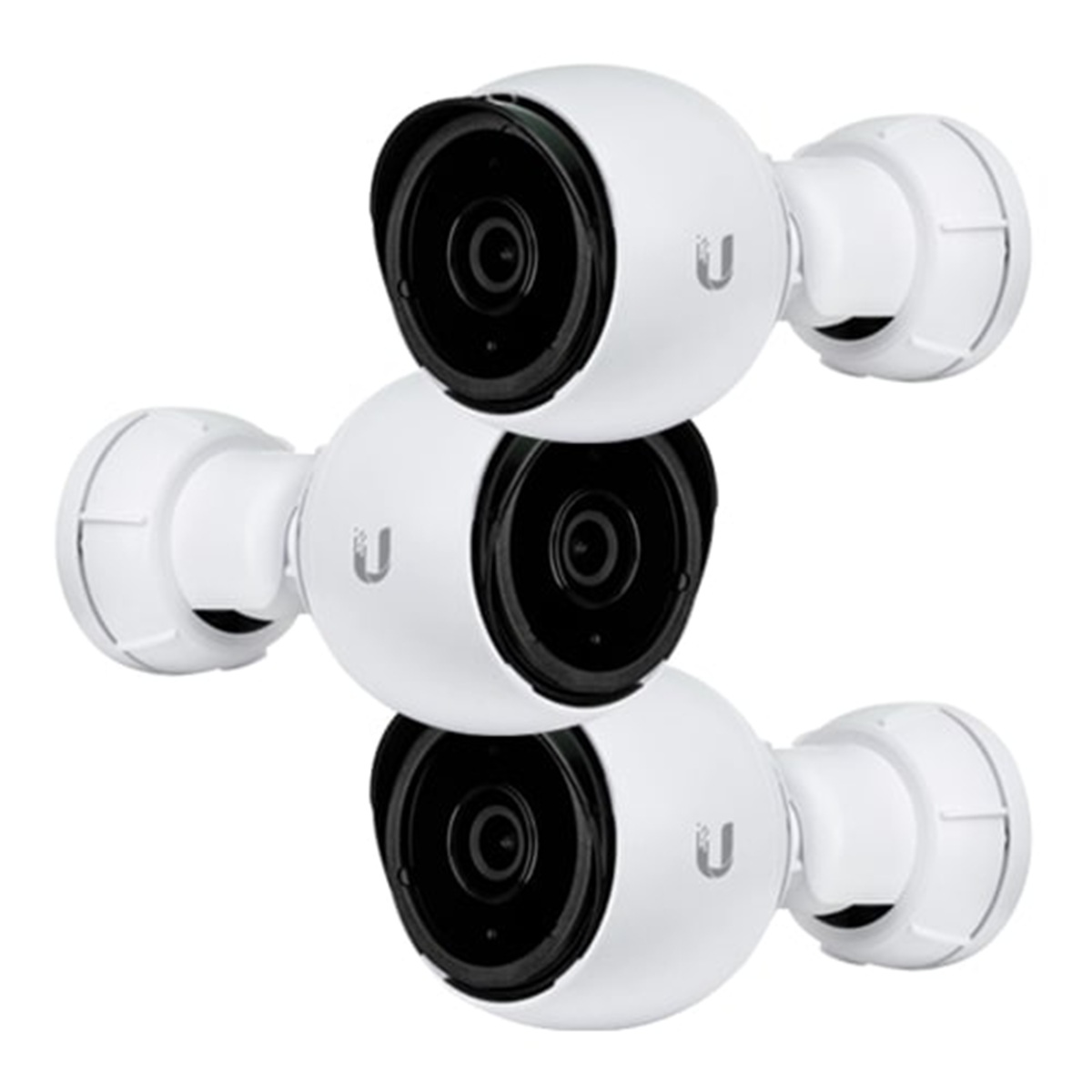

• 3 x UVC-G4-BULLET Camera
• 3 x Cable Gland
• 6 x Screw Anchors
• 6 x Self-Tapping Screws
• 3 x Pole Mount Bracket
• 6 x Machine Screws

Standard Warranty: 2-Years – effective Jan 2024. (Purchases before this date have a 1-Year warranty)
